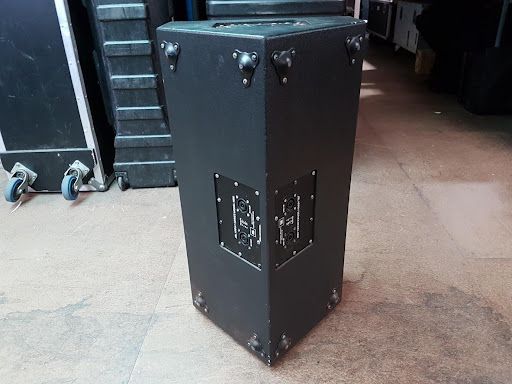

JBL Array 4890
Features:
- Two Configurations - Vertical format for minimum footprint, and a Horizontal version for minimum height.
- High Technology Transducers - 355 mm (14 in) Ultra-low Distortion Neodymium Woofer with Unique Gap Topology 38 mm (1.5 in) exit, 100 mm (4 in) diaphragm Neodymium Compression Driver.
- Versatile Coverage - 60° x 40° horn that rotates in the 4890, and 45° cabinet angles provide optimum coverage for any application. Horn may be horizontally or vertically oriented in the 4890.
- Integrally Designed with JBL - Array Series Controllers Choose Analog, or Digital Controller for optimum system performance
Specifications:
- Frequency Response ¹ (± 3 dB): 70 Hz - 18 kHz
- Sensitivity: 98 dB (1 W, 1 m)
- Maximum Continuous SPL, (Peak): 129 dB, (132 dB)
- Recommended HE Amplifier Power: 300 W @ 8Ω
- Recommended L.F. Amplifier Power: 600 W @ 8Ω
- Nominal Coverage: 60° horizontal, 40° horizontal, 60° vertical
- High Frequency Transducer: 2450 SL 38 mm, (1.5 in) Compression driver, 8Ω 100 mm (4 in) voice coil, pure titanium diaphragm, neodymium magnet
- Power Rating: 75 W AES, 1 kHz to 10 kHz, 300 W peak
- High Frequency Horn Optimized Aperture Flat-Front Bi-Radial®, die cast aluminum
- Coverage: 60°, 40°
- Low Frequency Transducer: 1400 PRO 355 mm (14 in) Ultra linear, neodymium magnet motor, Vented Gap Cooling, 8 100 mm (4 in) voice coil
- Power Rating: 600 W AES, 50 Hz to 500 Hz, 2400 W peak
- Enclosure: 19 mm (.75 in), 13 ply, 45º angle, handles
- Connectors: Parallel 8 pin Neutrik pins 1 ± LF, Pins 3 ± HF
- Dimensions H x W x D: 376 x 686 x 376 mm (14.8 x 27 x 14.8 in)
- Net Weight: 34 kg (75 lb)
- Finish: Black textured paint
- Grille: 16 ga. perforated steel, foam backed
